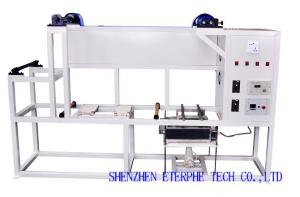

tinning machine TE22-R - Product

Other Specification : Product Introduction: This Machine Is Designed For The Processing Of Tinned Copper Strip Specially Used For Solar Energy. With A Rational Structure, It Can Be Fastly Adjusted, Easily Operated And Precisely Controlled; Besides, It Covers Short Start-up Time And High Ability To Process. It Can Make Immersion Plating For 24 Copper Strips Maximally At One Time. Details: Model: TE22-R Power Supply: AC220V Power: 2000W/H Dimensions:(L)2200×(W)700×(H)1500mm Weight: 260KG Processing Strips: 1-24 Strips (12 Strips Are Suggested) Temperature Control:±2 Centigrade Tin-melting Time: 30Min (35KG) Plating Thickness: 0.015-0.035mm Processing Speed: 6M/Min (maximum Speed)
