Industrial Moible Dehumidifier , Automatic Control Dehumidification Systems - Product


Place of Origin : Huangzhou,China
Delivery Time : 60days

Product Description

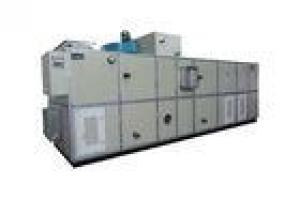

Industrial Moible Dehumidifier , Automatic Control Dehumidification Systems

Quick Details:

Process Airflow: 18000m3/h

Automatic control system

Humidity control

Industrial mobile dehumidifier

For shipbuilding



Applications:

Shipbuilding Painting Industry etc.



Specifications:

- - - -
Main Parameters | |
Model | ZCY-6000 | ZCY-10000 | ZCY-15000 | ZCY-18000 |
Process airflow (m3/h) | 6000 | 10000 | 15000 | 18000

Physical Specification

Other Specification : Industrial Moible Dehumidifier , Automatic Control Dehumidification Systems Quick Details: Process Airflow: 18000m3/h Automatic Control System Humidity Control Industrial Mobile Dehumidifier For Shipbuilding Applications: Shipbuilding Painting Industry Etc. Specifications: - - - - Main Parameters | | Model | ZCY-6000 | ZCY-10000 | ZCY-15000 | ZCY-18000 | Process Airflow (m3/h) | 6000 | 10000 | 15000 | 18000 | Compressor Power(kw) | 35 | 50 | 70 | 90 | Power Of Supply Fan(kw) | 8.5 | 11 | 18.5 | 22 | Regeneration Power (kw) | 60 | 99 | 120 | 180 | Cooling Load(kcal/h) | 9*104 | 13*104 | 22*104 | 26*104 | Installed Power(kw) | 120 | 175 | 288 | 370 | Dimension L*W*H (mm) | 3850*2240*3100 | 4270*2240*3100 | 5100*2240*3100 | 6500*2240*3100 | Conditions Of Air Inlet | T=15-40, RH=50-99% | Conditions Of Air Outlet | T=20-32, RH 45% | Supply Pressure | >1000pa | Main Program | General Refrigeration Refrigeration And Rotor Dehumidification Rotor Dehumidification Rotor Dehumidification And Heating | Power Supply | 3 Phase, 380V, 50HZ | - - - - General Description: ZCY Series Four Season Mobile Dehumidifiercan Help You To Control Humidity In Temporary Site.It Is A Dehumidification Combination Of Cooling And Honeycomb Rotor. In Summer Dehumidificationis Mainly Bycooling And Subordinately By Rotor, Combined Dehumidification In Transition Season, While In Winterrotor Dehumidifying Is Taken As The Key Link. Refrigerating System Ofmoveabledehumidifier Is Air-cooled, The Head Of Air-cooled Fan Adopts Import Screw Compressor So As To Saveenergy And Improve Operation Stability Of The Unit. The Air To
