Hollow Piston Rod - Product

^{UNIT PRICE^{NEGOTIABLE (DEP ...}}

^{MINIMUM QUANTITY^{1 TON}}

^{WARRANTY^{1 YEAR (QUALITY ...}}

Place of Origin : Wuxi,China
Delivery Terms : 7–30 Days (stock Sizes Within 7 Days)
Delivery Time : Negotiable
Product Capacity : 300 Tons Per Month
Payment Terms : T/T, L/C, Western Union

Product Description

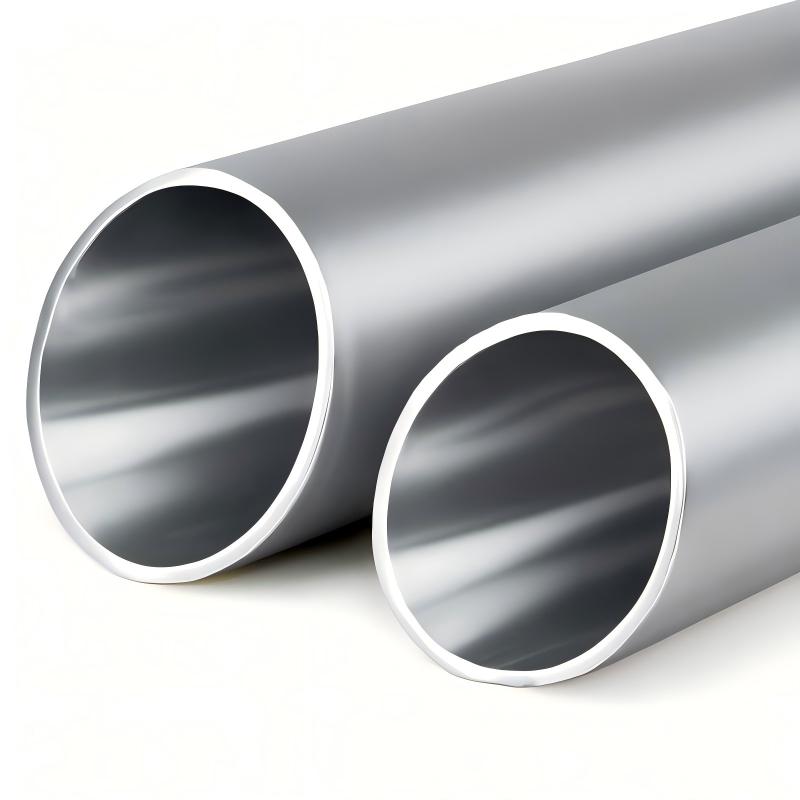

Hollow piston rods are chrome plated steel bars with a hollow cross-section, designed to reduce weight while maintaining high strength and durability. With precision machining and superior surface finish, they provide excellent wear resistance, dimensional accuracy, and reliable performance. Widely used in hydraulic cylinders for construction machinery, agricultural equipment, mining machines, and industrial systems.

Basic Information

Brand : Myler Hydro
Model : Hollow Chrome Plated Piston Rod
Material : CK45, ST52, 20MnV6, 42CrMo4, 40Cr
Color : Silver (chrome Plated Surface)
Expiry/Validation Period : Long-term Supply Available

Physical Specification

Size or Volume : Customized According To Diameter & Length
Weight : Based On Size And Specification
Other Specification :

Specifications – Hollow Piston Rod

Parameter	Specification
Outer Diameter Range	20 Mm – 200 Mm
Inner Diameter Range	10 Mm – 150 Mm
Wall Thickness	5 Mm – 25 Mm (customizable)
Length	Up To 8000 Mm (standard 1000–6000 Mm)
Material Options	CK45, ST52, 20MnV6, 42CrMo4, 40Cr
Surface Condition	Precision Ground And Hard Chrome Plated
Chrome Thickness	20–30 μm (customizable Up To 50 μm)
Surface Hardness	850–1150 HV (Vickers)
Core Hardness	HRC 28–35 (quenched And Tempered)
Surface Roughness	Ra ≤ 0.2 μm
Straightness	≤ 0.2 Mm/m
Ovality	≤ 50% Of ISO F7 Tolerance
Yield Strength	≥ 600 MPa (depending On Steel Grade)
Tensile Strength	700–900 MPa (depending On Steel Grade)
Salt Spray Test	120–200 Hours (neutral Salt Spray Test, NSS)
Standard Compliance	DIN 2391, EN 10305, ASTM A519
Applications	Hydraulic Cylinders, Construction Machinery, Agricultural Equipment, Mining Machinery, Industrial Hydraulic Systems

Looking For Reliable Hydraulic Components?

Myler Hydro Specializes In chrome Plated Piston Rods, honed Tubes, And Cylinder Barrels With Proven Export Experience To The Middle East, Southeast Asia, South America, And Russia.

Get In Touch With Our Sales Team For Product Details, Technical Support, And Quotations. We Provide Fast Response, Customized Solutions, And Timely Delivery.

Email: Info@chromerods.com

Phone / WhatsApp: 86-17766334294

Web: Mylerhydro.com

Myler Hydro – Your Trusted Partner For Hydraulic Solutions.
