Automatic Pallet Stacker - [ Sell Product ]

Place of Origin : Shenzhen,China
Post Date : 28-12-2021
Expiry Date : 24-06-2025

Trade Description

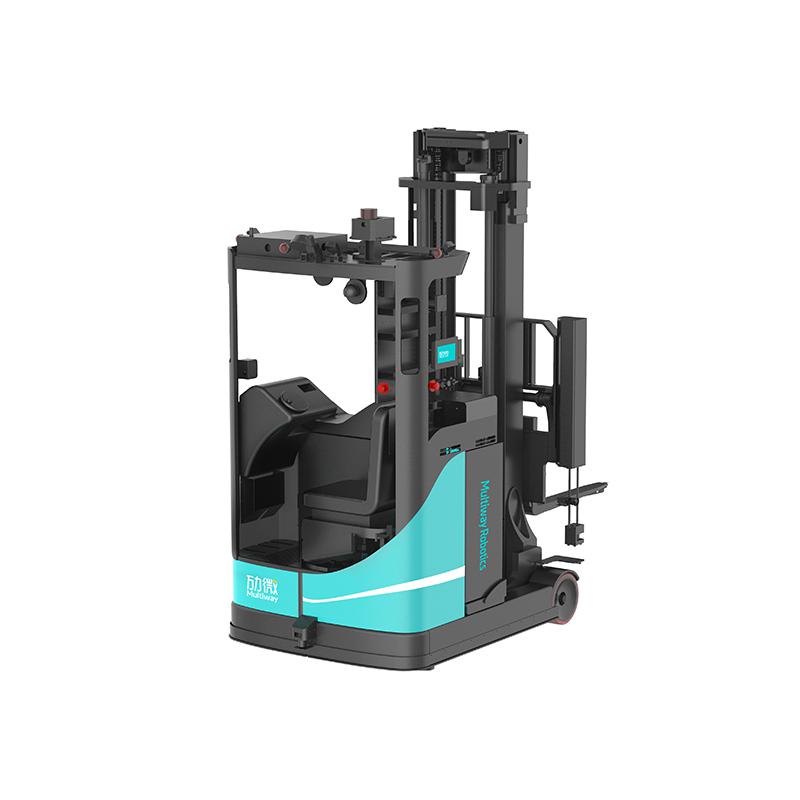

AGV Stacker Pallet MW-SL14, Using Laser Navigation And Positioning, The Payload Reaches Reach 2 Tons, And The Lifting Height Can Reach 5m. The Larger Battery Capacity Design Extends The Working Time While Reducing The Number Of Charging, Which Effectively Improves The Working Time And Working Efficiency Of The Unmanned Forklift.

The Specification Of MW-SL14 Automatic Pallet Stacker
?Standard ?Option
Standard Models MW-SL14 Automatic Pallet Stacker
Navigation Laser+reflector Navigation ?
LiDAR SLAM Navigation ?
Hybrid Navigation(LiDAR/Laser Reflector+QR Code/Magnetic Nail/ceiling) ?
Communication Wireless Wi-Fi ?
Optical Communication ?
5G ?
Specifications Payload(kg) 1400
Turning Radius(mm) 1130
Lost Load Height (mm) 1600
Max Lifting Height(mm) 3000
Max Height Payload(kg) 700
Min Fork Height(mm) 85
Dimensions L/e/s(mm) 1150x180x55
Outer Fork Width(mm) 680
Aisle Width?Pallet Dimensions 1m(along The Fork)x1.2m?(mm) 2300
Pallet Posture Recognition Width?Pallet 1m(along The Fork)x1.2m?(mm) 2650
Weight(kg) 730
Dimensions LxWxH(mm) 1565x882x1935
Motion Capability Motion Reach, Back, Turning
Speed(Unloaded/Max Loaded)(m/s) 1.66/1.38
Accuracy(Bearing Wheel Center)(mm) ±5
Endangle Accuracy(°) ±1
Ditch Crossing Capability(mm) =30
Obstacle Crossing Capability(mm) =10
Climbing Capability(mm) =3°(5%)
Safety&protection Manual/Auto ?
Offset Protection, Abnormal Positioning Protection ?
Components Malfuction, Communication Fault Protection ?
Bottom Front LiDAR Anti-collision(1/2pcs) ?
3D Obstacles Avoidance(Front/back 1/2pcs) ?
Fork Front Anti-collision(Light Sensor) ?
Bumper Strip(Truck Head) ?
Emergency Button(At Least 2pcs) ?
Sound(Speaker)alarm?Light Alarm(3-color Light 2pcs) ?
Width Light(Front, Left, Right 3pcs) ?
HMI(7 Inches) ?
Monitoring Camera �
Fork Function Cargo Detection ?
Cargo Posture Detection ?
Anti-pressure Detection(Light Sensors) ?
Cargo Offset Detection(Ultrasonic) ?
Space Detection(LiDAR Point Cloud) ?
Auto Fork Distance Adjust �
Lateral Offset Positioning �
Inclination Detection �
Battery Capability Recharging Mode Manual/Auto
Manual Recharging(Plug Direct) ?
Battery Replacing(Standard) Disassembly And Assembly
Lateral Replacing(less Capability) �
Battery Type(Standard) LiFePO4
Voltage 24V
Standard Capability?Hoisting? 150/180Ah
Standard Capability?Lateral?(Ah) �
Operation Time(h) 4-5h
Lifetime 3000 Times, 70% Left
Recharging Station(Standard) 24V100A
Visual Function Pallet Posture Recognition(3D Camera) ?
Fork Feeding Side Detection(3D Camera) ?
Weight Detection(Weighing Module) ?
Cargo Falling Detection(3D Camera×2pcs) ?
Auto Inventory(2D+3D Cameras) ?
Bar Code/RFID Recognition(Reader/RFID Sensor) ?

The Advantages Of MW-SL14 Automatic Pallet Stacking Machine
Environment Adaption: Laser Navigation, No Need To Refit Scenarios.

Intelligent Running: Map Building, Path Planning, Auto Recharging, Self Operating That Meets Various Scenarios. Machine Vision And Comprehensive System Enable Unmanned Forklift, Improving Flexibility.

The Features Of MW-SL14 Automatic Pallet Stacker
High Accuracy, High Efficiency: Primary Positioning ±5mm, Secondary Positioning±2mm.

Max Speed 1.66m/s, Max Payload 1400kg, Max Lifting Height 3m. 7×24h Full Time Running.

Intelligent, Safe, Easy To Operate: Comprehensive Self Detection Capability.

Safe Sensors + Dual Control System Protection, 360°anti-collision, Light&Sound Alarm Protects.

Sustainable Iteration, Remote Upgrading, Friendly HMI.

Multiway Robotics Is A Logistics Robotics Companies, We Provide Logistics Robots, Bots Warehouse And Etc. Want To Know Types Of Automated Guided Vehicle? Please Contact Us.
