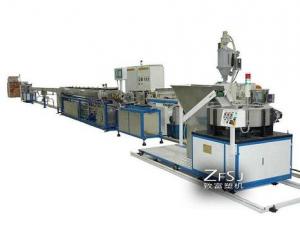

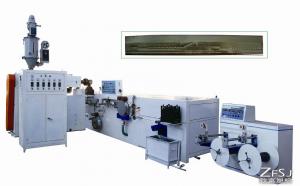

single blade labyrinth drip irrigation tape making machine - Product


Place of Origin : Tangshan,China
Payment Terms : T/T L/C

Product Description

Product Specification/Models
Model SJDY-55
Production speed 37--42 m/min
Main driving power 15 kW
Max. extruding capacity 30 kg/h
Heating power 18 kW
Filter changing method Durable filter
Driving power of shaping wheel 0.75 kW
Driving power of tractor 0.75 kW
Winding motor 6 N.m×2
Water consumption 1 m3/h
Air consumption 0.3 m3/h
Installation power 38 kW
Overall dimension(L×W×H) 12 m×1.5 m×2.7 m
Weight 2000 kg

Basic Information

Brand : Zfsj
Model : SJDY-55

Physical Specification

Other Specification : Product Description Water Discharge Rate: 1-5L/H Water Outlet Space: Adjustable Thickness: 0.18-0.22mm Diameter: 16mm, 20mm Adjustable Product Feature 1.The Diameter Of Tape Is Controlled By Diameter- Control Device So That The Measurement And Control Of Diameter Of Tape Is Accurate, Steady And The Main Machine Motor, Shaping Part And Tractor All Adopt Frequency Reliable. 2.Conversion Control System And They Have Characteristics Of Easy Adjustment Reliable Performance, Stable Work Condition And Low Consumption 3.The Barrel And Screw Of Extruder Adopt Ionitriding Alloy Materials, Which Has Features Of High-hardness, High Water Resistances And Long Service Life. 4.The Heating Temperature Of Extruder And Mold Die Head Adopts Automatic-control-temperature-system. The Accuracy Of Controlling The Temperature Is High And It Also Economizes The Energy Obviously. 5.The Drip Irrigation Tape Is Curled By Moment Electrical Machinery. The Drip Irrigation Tape Can Overcome The Tension Emerged Effectively. The Machine Still Has The Equipment To Calculate The Length Of The Drip Irrigation Tape. The Rolling Length Can Be Settled Casually Blew 2500m (if Meter Prolonging Is Required, It Can Be Ordered). The Rolling Machine Has The Functions Of Memory And Automatic Alarming Etc. 6.The Use Of Drip Irrigation Tape Is Especially Suitable For The Climatic Conditions Of Drought, Half Drought And Mountain Region, Which Can Reach The Purpose Of Saving Water And Increasing Output. 7.The Whole Machine Is Designed Moderately, Reasonably, Beautifully And Its Automation Degree Is High.
