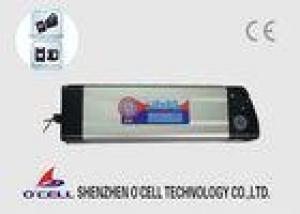

High Capacity LiFePO4 Lithium Battery With SMbus , 24V 20AH - Product

Other Specification :  High Capacity LiFePO4 Lithium Battery With SMbus , 24V 20AH 24V 20AH LiFePO4 Battery PacK Wireless Monitoring Equipment, Medical Instrument Equipment, Instruments, LED Lamps And Lanterns, Manufacture 24V 20AH LiFePO4 Battery Pack With SMbus Voltage: 24V Capacity: 20AH Weight: 5.6Kg Dimension: 130*183*195mm Max Charge Current: 38A (10A Recommended) Over Current: 40A Specification Form: - - - - NO. | Items | Specifications | 1 | Charge Voltage | 29.3V | 2 | Number Of Series | 8S6P | 3 | Nominal Voltage | 25.6V | 4 | Nominal Capacity | 20AH(0.2C Discharge) | 5 | Charge Current | Standard Charging: 0.2C | 6 | Rapid Charge: 0.5C | 7 | Charging Time | Standard Charging:6.0 Hours | 8 | Rapid Charge: 3.0 Hours | 9 | Max Charge Current | 10A | 10 | Max Continuous Discharge Current | 38A | 11 | Discharge Cut-off Voltage | 20.0V | 12 | Operating Temperature | Charging: 0C-45C | | Discharging: -10C-45C | - - - - New Function! 1. SMbus To Know More Information For Battery Status 2. Capacity Indicator Available 3. Fuse For Duplicate Protection Application: Communication: Back-up Electric Supply, Interphone Vehicles: Electric Bicycle, Golf Car, Electric Wheelchair Power Tools: Electric Cropper, Electric Drill, Electric Saw, Electric Hammer. Illuminate Devices: Solar Battery, Miner Lamp, Solar Street Lamp, Emergency Light, And Electric Torch, LED Lamps And Lanterns, Traffic Signs, Others: Toy, Small Home Appliance,wireless Monitoring Equipment, Medical Instrument Equipment, Toys, Etc Features: Ultra Light. One Fifth The Weight Of Lead-acid Batteries On Average Twice To Four Times The Service Life Of Lead-acid Batteries Drop-in Replacement For Your OEM Battery Fast Recharge Rate No Explosive Gasses During Charge, No Lead, No Acid Environmentally Friendly
