This is the product title

UTV, ATV Portable 2500 lb line pull Electric Cable Pulling Winch / Winches - Product

Place of Origin : Ningbo,China
Delivery Time : 25 Days

Product Description

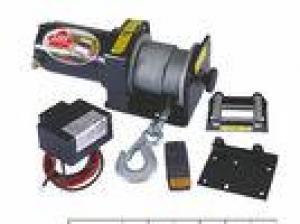

UTV, ATV Portable 2500 lb line pull Electric Cable Pulling Winch / Winches

Specifications:

- - - -
Rated line pull | 2500 lbs (1133 kgs) single line |
Motor | Permanent magnet, 0.8kw/1.1hp (12v ) |
Gear reduction ratio | 153:1 |
Cable (Dia x L) | 3/16"*45'(4.76mm*14m) |
Drum size (Dia x L) | 1.24"*2.88"(31.5mm*73mm) |
Overall dimensions(L X W X H) | 11.4"*4.1"*4.1"(290mm*105mm*105mm) |
Mounting bolt pattern | 3.13"(79.5mm) |

Physical Specification

Other Specification : UTV, ATV Portable 2500 Lb Line Pull Electric Cable Pulling Winch / Winches Specifications: - - - - Rated Line Pull | 2500 Lbs (1133 Kgs) Single Line | Motor | Permanent Magnet, 0.8kw/1.1hp (12v ) | Gear Reduction Ratio | 153:1 | Cable (Dia X L) | 3/16"*45'(4.76mm*14m) | Drum Size (Dia X L) | 1.24"*2.88"(31.5mm*73mm) | Overall Dimensions(L X W X H) | 11.4"*4.1"*4.1"(290mm*105mm*105mm) | Mounting Bolt Pattern | 3.13"(79.5mm) | Packing Size | 34*24*34cm 2PCS/CTN | Weight | N.W/G.W: 18kg/20kg | - - - - Notice: 1) Do Not Use Winch As A Hoist, Do Not Use For Transportaion Of People. 2) Don't Operate And Spool Under Full Load Over One Minute Continuously. 3) While Motor Is Overtheating, Please Stop For A While To Cool Down. 4)1-year Warranty.
