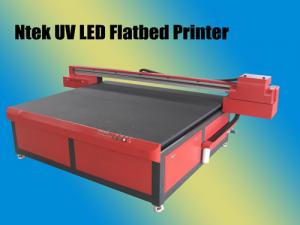

UV led lamp flatbed printing machine - Product

^{MINIMUM QUANTITY^1SET}

Place of Origin : Linyi,China
Delivery Time : Within 3-30 Working Days
Payment Terms : FOB TT

Product Description

Advantages
LED UV lamp without preheat boot on the run, save time and energy;
LED UV lamp for ink curing, environmental and no-odor release, instant curing, and not easily fade;
EPSON DX5 printhead, Hyperfine printing and high efficiency with 1440dpi;
Exclusive function that the Z-axis height can easily lift up and down, adjust the height between the printhead and the media automatically;

Basic Information

Brand : Ntek
Model : YC2025

Physical Specification

Other Specification : Specifications Product Model YC2025 Printhead Technology Drop-on Demand Piezo Electric Printhead Control Printhead Voltage Is Software Adjustable Printhead Type EPSON DX5 Printhead Printhead Number 1/2 Ink Characteristics UV Curing Ink Ink Reservoirs Refillable On The Fly While Printing/1000ml Per Color LED UV Lamp More Than 20000-hours Life Color Control ICC Based Color,curves And Density Adjustment Printhead Arrangement CMYK/C M Y K Lk LLk Lc Lm CMYKW/C M Y K Lk LLk Lc Lm W CMYK*2/C M Y K Lk LLk Lc Lm*2 Printhead Cleaning System Automatic Cleaning System, Automatic Dry-preventing System Guide Rail Taiwan HIWIN(THK Optional) Working Table Vacuum Sucking Printing Size YC2025:2.00x2.50m Print Interface USB2.0 Media Thickness Within 100mm, Higher Can Be Customized Printing Resolution&Speed 360x720DPI(4pass) 25Sq.m/h(2 EPSON DX5 Printhead) 360x1080DPI(6pass) 20Sq.m/h(2 EPSON DX5 Printhead) 720x720DPI(8pass) 15Sq.m/h(2 EPSON DX5 Printhead) 720x1080DPI(6pass Or 12pass) 12Sq.m/h(2 EPSON DX5 Printhead) 720x1440DPI(8pass Or 16pass) 6Sq.m/h(2 EPSON DX5 Printhead) Life Of Printed Image 5 Years(outdoor),10year(indoor) File Format TIFF,JPEG,Postscript,EPS,PDF Etc. RIP Software UltraPrint Power Supply 220V 50/60Hz(10%) Power 2000W Operation Environment Temperature 20 To 30℃,Humidity 40% To 60% Equipment Dimension YC2025:3.90(L)x2.55(W)x1.30(H)m Equipment Weight YC2025:1300kg Warranty 1 Year Exclude The Print Head,Ink Filter, Ink Pump After-sale Service 24-hour On-line Realtime Technology Service
